Preloaded Piezo Actuator
HOME > PRODUCTS > Piezo Products > Preloaded Piezo Actuator
C7 series Preloaded Piezo Actuator
C7 series Preloaded Piezo Actuator
C7 series Preloaded Piezo Actuator
Features

  • 2000N thrust
  • Piezoelectric ceramics with lifetime of one billion cycles
  • Sub-nanometer resolution
  • Simple structure, compact size
  • Vacuum compatible up to 10⁻⁵ Pa
  • Integrated spherical end cap

Download
Applications
  • Static and dynamic precision positioning
  • Laser tuning
  • Optical fibre positioning adjustment
  • Micro - nano technology
Description

Preloaded Piezo Actuator is an armored device for Piezo Stack Actuator, which plays a role in stack protection and easy installation. At the same time, the actuator applies pre - pressure to the piezoelectric ceramic internally, providing a certain amount of tension and adjustment of displacement output. Preloaded Piezo Actuator can be internally integrated with strain gauges to achieve closed - loop control.

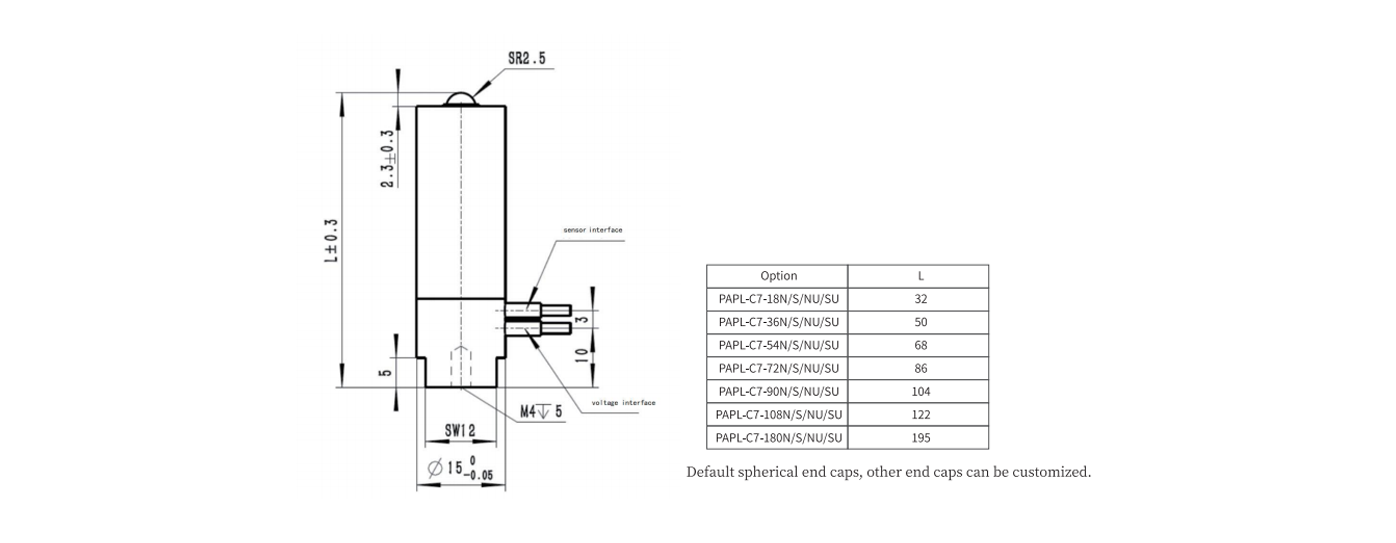

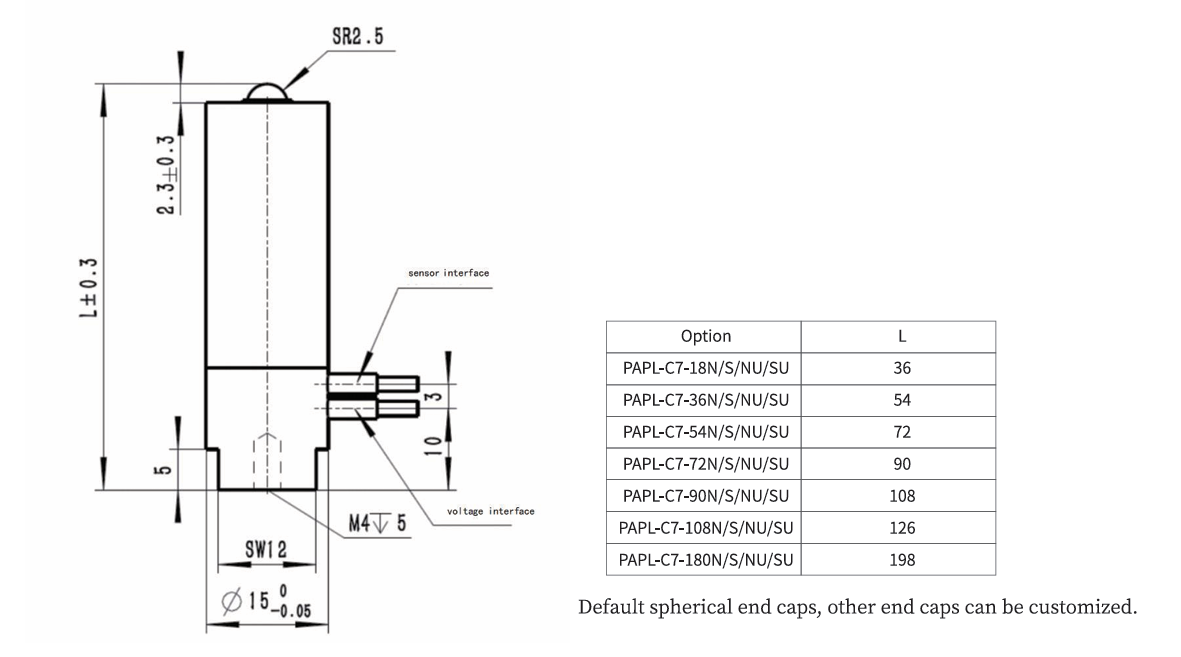

Interface Definition



Technical Specifications
<<<Swipe left to see more parameters



PAPL - C7 - 18N

PAPL - C7 - 36N

PAPL - C7 - 54N

PAPL - C7 - 72N

PAPL - C7 - 90N

PAPL - C7 - 108N

PAPL - C7 - 180N

Unit

Tolerance

Travel range at 150V

18

36

54

72

90

108

180

μm

±20%

Electrical capacitance*

3

6

9

12

15

18

30

μF

±20%

Open loop resolution

0.18

0.36

0.54

0.72

0.9

1.08

1.8

nm

Typical value

Integrated sensor SGS



















Closed loop resolution***

0.36

0.72

1.08

1.44

1.8

2.16

3.6

nm

Typical value

Resonant frequency



17.5

15



11





kHz

±20%



22





13



10

4.5





Stiffness

225

107

75

57

44

38

10

N/μm

±20%

Push force****

2000

2000

2000

2000

2000

2000

2000

N

Max.value

Pull force

150

150

150

150

150

150

150

N

Max.value

Operating voltage

-20 - 150

V



Voltage connection

LEMO FFA.00.250





Sensor connection

LEMO FFA.0S.304





Cable length

1.5

m

±0.02 m



*Displacement output under no load
** Capacitance test conditions: ambient temperature environment, 1Vpp, 1kHz
*** Closed - loop parameters applicable only to the closed - loop version of the piezoelectric preload actuator
**** Thrust test: drive voltage range 0 to 150V
Other specifications can be customized on request

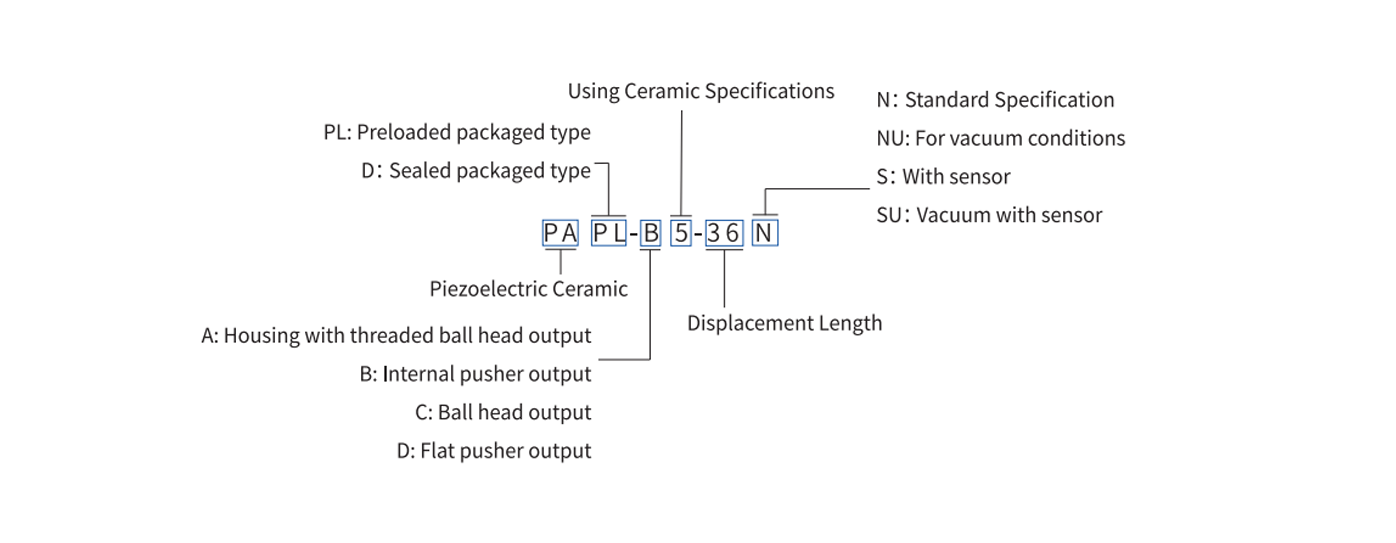

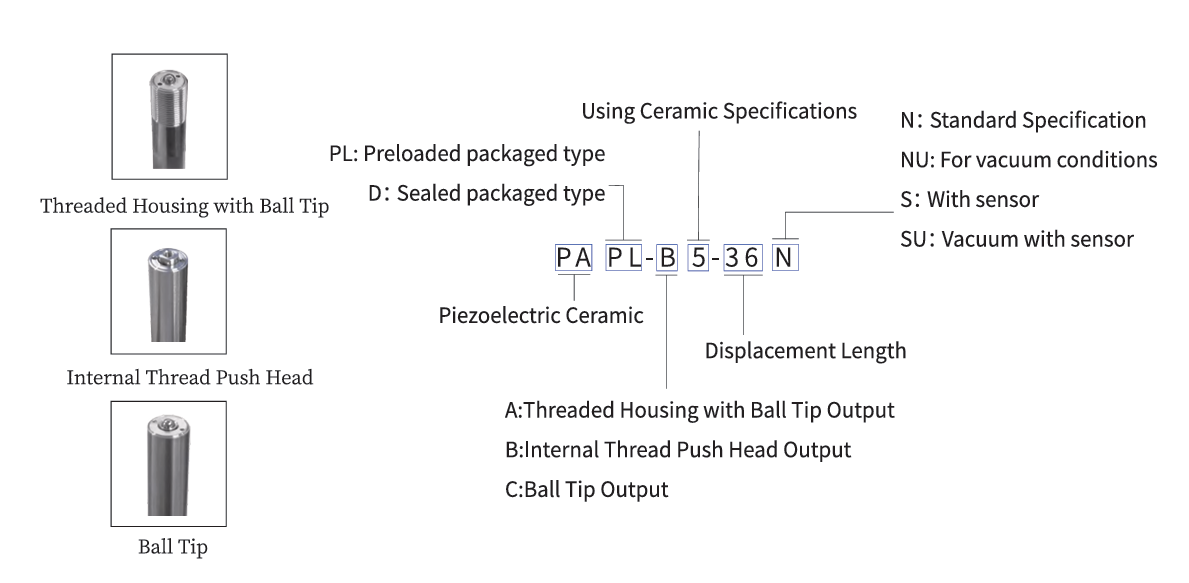

Model Interpretation
<<<Swipe left to see more parameters

Customization Info

PAPL series C7 piezoelectric preloading actuator, open-loop version

Model

Explain

PAPL-C7-18N

C7 series Preloaded Piezo Actuator, effective travel 18μm, open-loop.

PAPL-C7-36N

C7 series Preloaded Piezo Actuator, effective travel 36μm, open-loop.

PAPL-C7-54N

C7 series Preloaded Piezo Actuator, effective travel 54μm, open-loop.

PAPL-C7-60N

C7 series Preloaded Piezo Actuator, effective travel 60μm, open-loop.

PAPL-C7-90N

C7 series Preloaded Piezo Actuator, effective travel 90μm, open-loop.

PAPL-C7-108N

C7 series Preloaded Piezo Actuator, effective travel 108μm, open-loop.

PAPL-C7-180N

C7 series Preloaded Piezo Actuator, effective travel 180μm, open-loop.



PAPL series C7 piezoelectric preloading actuator, strain gauge closed-loop version

Model

Explain

PAPL-C7-18S

C7 series Preloaded Piezo Actuator, effective travel 18μm, strain gauge closed-loop.

PAPL-C7-36S

C7 series Preloaded Piezo Actuator, effective travel 36μm, strain gauge closed-loop.

PAPL-C7-54S

C7 series Preloaded Piezo Actuator, effective travel 54μm, strain gauge closed-loop.

PAPL-C7-60S

C7 series Preloaded Piezo Actuator, effective travel 60μm, strain gauge closed-loop.

PAPL-C7-90S

C7 series Preloaded Piezo Actuator, effective travel 90μm, strain gauge closed-loop.

PAPL-C7-108S

C7 series Preloaded Piezo Actuator, effective travel 108μm, strain gauge closed-loop.

PAPL-C7-180S

C7 series Preloaded Piezo Actuator, effective travel 180μm, strain gauge closed-loop.



PAPL series C7 piezoelectric preloading actuator, open-loop, vacuum compatible version

Model

Explain

PAPL-C7-18NU

C7 series Preloaded Piezo Actuator, effective travel 18μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-36NU

C7 series Preloaded Piezo Actuator, effective travel 36μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-54NU

C7 series Preloaded Piezo Actuator, effective travel 54μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-60NU

C7 series Preloaded Piezo Actuator, effective travel 72μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-90NU

C7 series Preloaded Piezo Actuator, effective travel 90μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-108NU

C7 series Preloaded Piezo Actuator, effective travel 108μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-180NU

C7 series Preloaded Piezo Actuator, effective travel 180μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.



PAPL series C7 piezoelectric preloading actuator, strain gauge closed-loop, vacuum compatible version

Model

Explain

PAPL-C7-18SU

C7 series Preloaded Piezo Actuator, effective travel 18μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-36SU

C7 series Preloaded Piezo Actuator, effective travel 36μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-54SU

C7 series Preloaded Piezo Actuator, effective travel 54μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-60SU

C7 series Preloaded Piezo Actuator, effective travel 72μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-90SU

C7 series Preloaded Piezo Actuator, effective travel 90μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-108SU

C7 series Preloaded Piezo Actuator, effective travel 108μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-C7-180SU

C7 series Preloaded Piezo Actuator, effective travel 180μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.
