Static and dynamic precision positioning, Optical fibre positioning adjustment, Laser tuning, Micro-nano technology
Preloaded Piezo Actuator is an armored device for Piezo Stack Actuator, which plays a role in stack protection and easy installation. At the same time, the actuator applies pre-pressure to the piezoelectric ceramic internally, providing a certain amount of tension and adjustment of displacement output. Preloaded Piezo Actuator can be internally integrated with strain gauges to achieve closed-loop control.

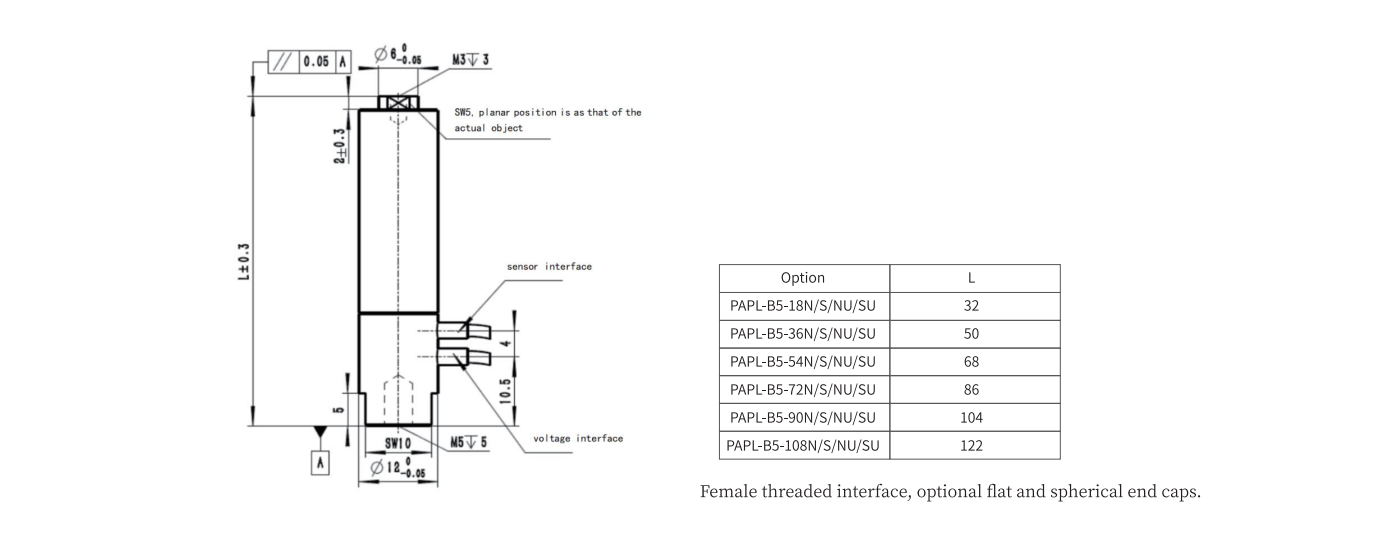

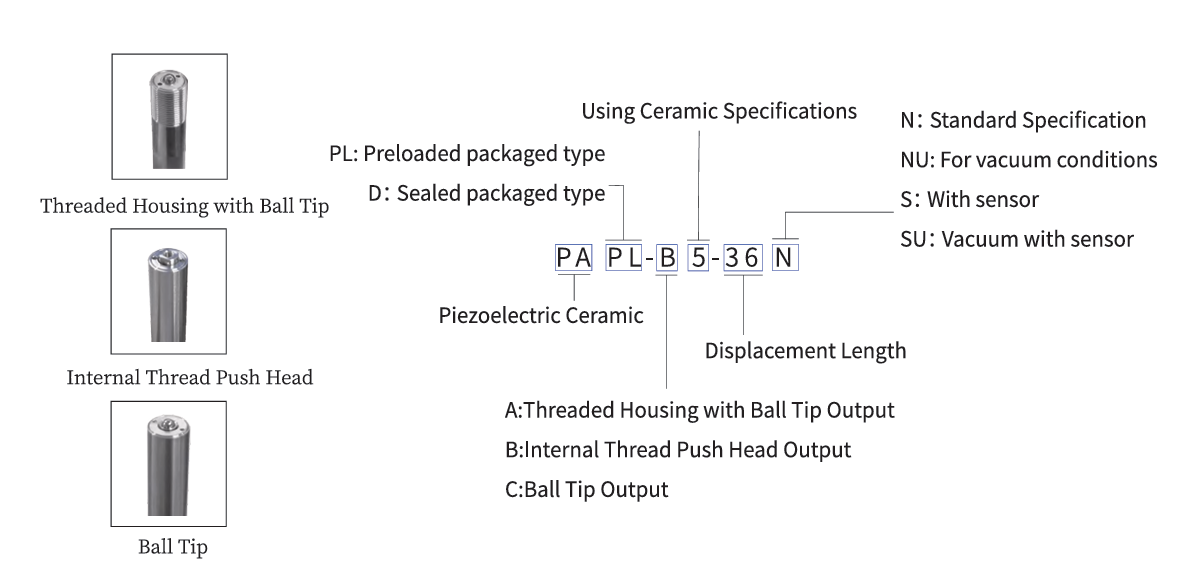

The default output end is an external thread, and other output end structures can be customized.
|
Technical Indicators |
Unit |
Tolerance |
PAPL-B5-18N |
PAPL-B5-36N |
PAPL-B5-54N |
PAPL-B5-72N |
PAPL-B5-90N |
PAPL-B5-108N |
|
Travel range at 150V |
μm |
±20% |
18 |
36 |
54 |
72 |
90 |
108 |
|
Electrical capacitance |
μF |
±20% |
1.5 |
3 |
4.5 |
6 |
7.5 |
9 |
|
Open loop resolution |
nm |
Typical value |
0.18 |
0.36 |
0.54 |
0.72 |
0.9 |
1.08 |
|
Integrated sensor |
|
|
SGS |
SGS |
SGS |
SGS |
SGS |
SGS |
|
Closed loop resolution |
nm |
Typical value |
0.36 |
0.72 |
1.08 |
1.44 |
1.8 |
2.16 |
|
Resonant frequency |
kHz |
±20% |
18 |
14 |
10 |
8.5 |
7 |
6 |
|
Stiffness |
N/μm |
Max. value |
57 |
27 |
19 |
15 |
12 |
10 |
|
Push force |
N |
Max. value |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Pull force |
N |
Max. value |
50 |
50 |
50 |
50 |
50 |
50 |
|
Operating voltage |
V |
|
-20~150 |
-20~150 |
-20~150 |
-20~150 |
-20~150 |
-20~150 |
|
Operating temperature range |
°C |
|
-20~80 |
-20~80 |
-20~80 |
-20~80 |
-20~80 |
-20~80 |
|
Voltage connection |
|
|
LEMO FFA.00.250 |
|
|
|
||
|
Sensor connection |
|
|
LEMO FFA.0S.304 |
|
|
|
||
|
Cable length |
m |
±0.02m |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
| * Displacement output under no load |
| ** Capacitance test conditions: ambient temperature environment, 1Vpp, 1kHz |
| *** Closed-loop parameters applicable only to the closed-loop version of the piezoelectric preload actuator |
| **** Thrust test: drive voltage range 0 to 150V |
| Other specifications can be customized on request |
|

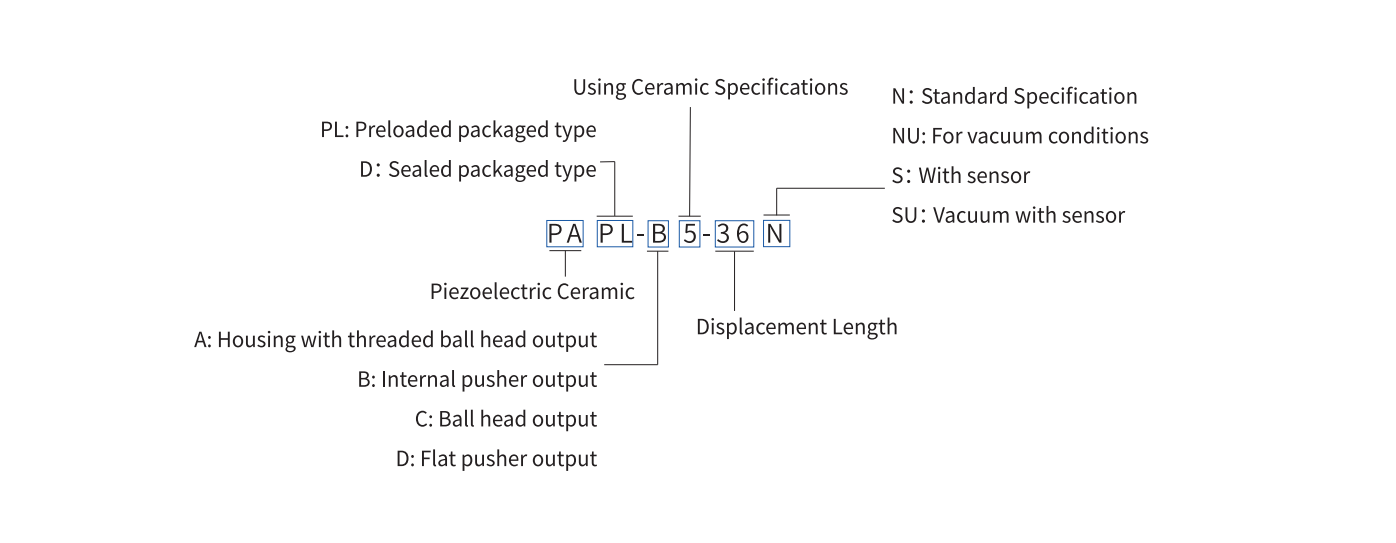

PAPL series B5 Pre press actuator, open-loop version |
|
|
Model |
Explain |
|
PAPL-B5-18N |
B5 series Preloaded Piezo Actuator, effective travel 18μm, open-loop. |
|
PAPL-B5-36N |
B5 series Preloaded Piezo Actuator, effective travel 36μm, open-loop. |
|
PAPL-B5-54N |
B5 series Preloaded Piezo Actuator, effective travel 54μm, open-loop. |
|
PAPL-B5-60N |
B5 series Preloaded Piezo Actuator, effective travel 60μm, open-loop. |
|
PAPL-B5-90N |
B5 series Preloaded Piezo Actuator, effective travel 90μm, open-loop. |
|
PAPL-B5-108N |
B5 series Preloaded Piezo Actuator, effective travel 108μm, open-loop. |
|
PAPL series B5 pre compression actuator, strain gauge closed-loop version |
|
|
Model |
Explain |
|
PAPL-B5-18S |
B5 series Preloaded Piezo Actuator, effective travel 18μm, strain gauge closed-loop. |
|
PAPL-B5-36S |
B5 series Preloaded Piezo Actuator, effective travel 36μm, strain gauge closed-loop. |
|
PAPL-B5-54S |
B5 series Preloaded Piezo Actuator, effective travel 54μm, strain gauge closed-loop. |
|
PAPL-B5-60S |
B5 series Preloaded Piezo Actuator, effective travel 60μm, strain gauge closed-loop. |
|
PAPL-B5-90S |
B5 series Preloaded Piezo Actuator, effective travel 90μm, strain gauge closed-loop. |
|
PAPL-B5-108S |
B5 series Preloaded Piezo Actuator, effective travel 108μm, strain gauge closed-loop. |
|
PAPL series B5 pre pressure actuator, open-loop, vacuum compatible version |
|
|
Model |
Explain |
|
PAPL-B5-18NU |
B5 series Preloaded Piezo Actuator, effective travel 18μm, open-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-36NU |
B5 series Preloaded Piezo Actuator, effective travel 36μm, open-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-54NU |
B5 series Preloaded Piezo Actuator, effective travel 54μm, open-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-60NU |
B5 series Preloaded Piezo Actuator, effective travel 72μm, open-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-90NU |
B5 series Preloaded Piezo Actuator, effective travel 90μm, open-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-108NU |
B5 series Preloaded Piezo Actuator, effective travel 108μm, open-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL series B5 pre compression actuator, strain gauge closed-loop, vacuum compatible version |
|
|
Model |
Explain |
|
PAPL-B5-18SU |
B5 series Preloaded Piezo Actuator, effective travel 18μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-36SU |
B5 series Preloaded Piezo Actuator, effective travel 36μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-54SU |
B5 series Preloaded Piezo Actuator, effective travel 54μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-60SU |
B5 series Preloaded Piezo Actuator, effective travel 72μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-90SU |
B5 series Preloaded Piezo Actuator, effective travel 90μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa. |
|
PAPL-B5-108SU |
B5 series Preloaded Piezo Actuator, effective travel 108μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa. |
