A5 series Preloaded Piezo Actuator
A5 series Preloaded Piezo Actuator
A5 series Preloaded Piezo Actuator
Features

  • 1000N thrust
  • Piezoelectric ceramics with lifetime of one billion cycles
  • Sub-nanometer resolution
  • Simple structure, compact size
  • Vacuum compatible up to 10⁻⁵ Pa

Download
Applications
  • Static and dynamic precision positioning
  • Laser tuning
  • Optical fibre positioning adjustment
  • Micro - nano technology
Description

Preloaded Piezo Actuator is an armored device for Piezo Stack Actuator, which plays a role in stack protection and easy installation. At the same time, the actuator applies pre-pressure to the piezoelectric ceramic internally, providing a certain amount of tension and adjustment of displacement output. Preloaded Piezo Actuator can be internally integrated with strain gauges to achieve closed-loop control.

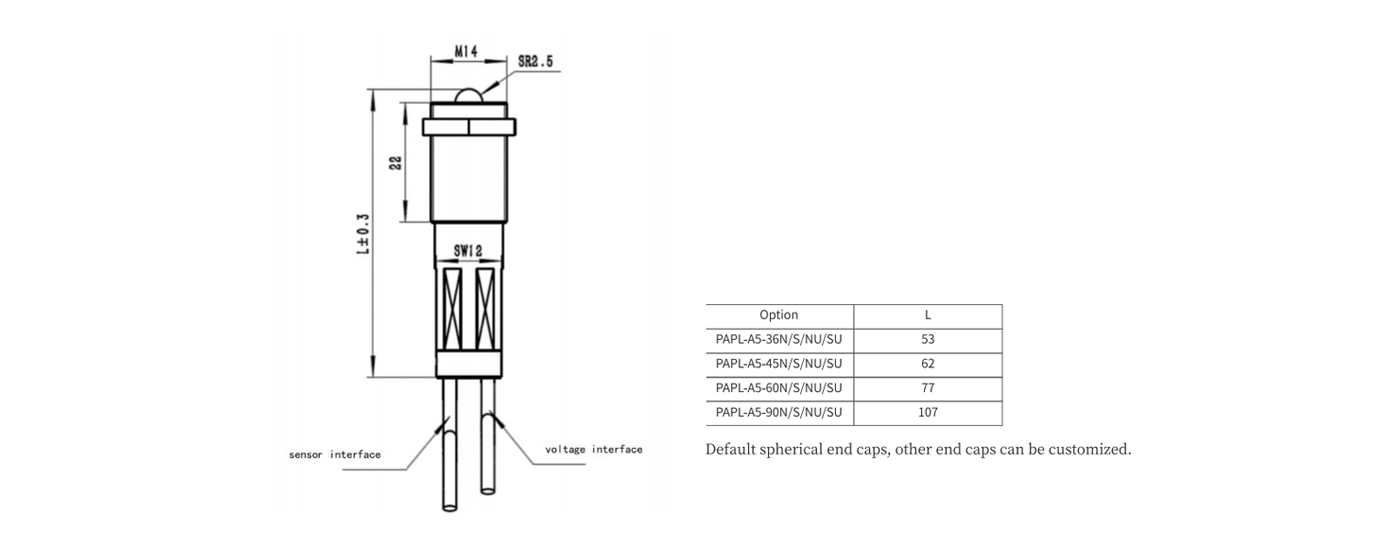

Interface Definition





Technical Specifications
<<<Swipe left to see more parameters



PAPL-A5-36N

PAPL-A5-45N

PAPL-A5-60N

PAPL-A5-90N

Unit

Tolerance

Travel range at 150V*

40

50

65

100

μm

±20%

Electrical capacitance**

3

3.8

5

7.5

μF

±20%

Open loop resolution

0.36

0.45

0.6

0.9

nm

Typical value

Integrated sensor

SGS



Closed loop resolution***

0.72

0.9

1.2

1.8

nm

Typical value

Resonant frequency

12

10

7

4

kHz

±20%

Stiffness

20

17

12

8

N/μm

±20%

Push force****

850

850

850

850

N

Max. value

Pull force

150

150

150

150

N

Max. value

Operating voltage

-20~150

V



Operating temperature range

-20~80

°C



Voltage connection

LEMO FFA.00.250





Sensor connection

LEMO FFA.0S.304





Cable length

1.5

m

±0.02



*Displacement output under no load
** Capacitance test conditions: ambient temperature environment, 1Vpp, 1kHz
*** Closed - loop parameters applicable only to the closed - loop version of the piezoelectric preload actuator
**** Thrust test: drive voltage range 0 to 150V
Other specifications can be customized on request

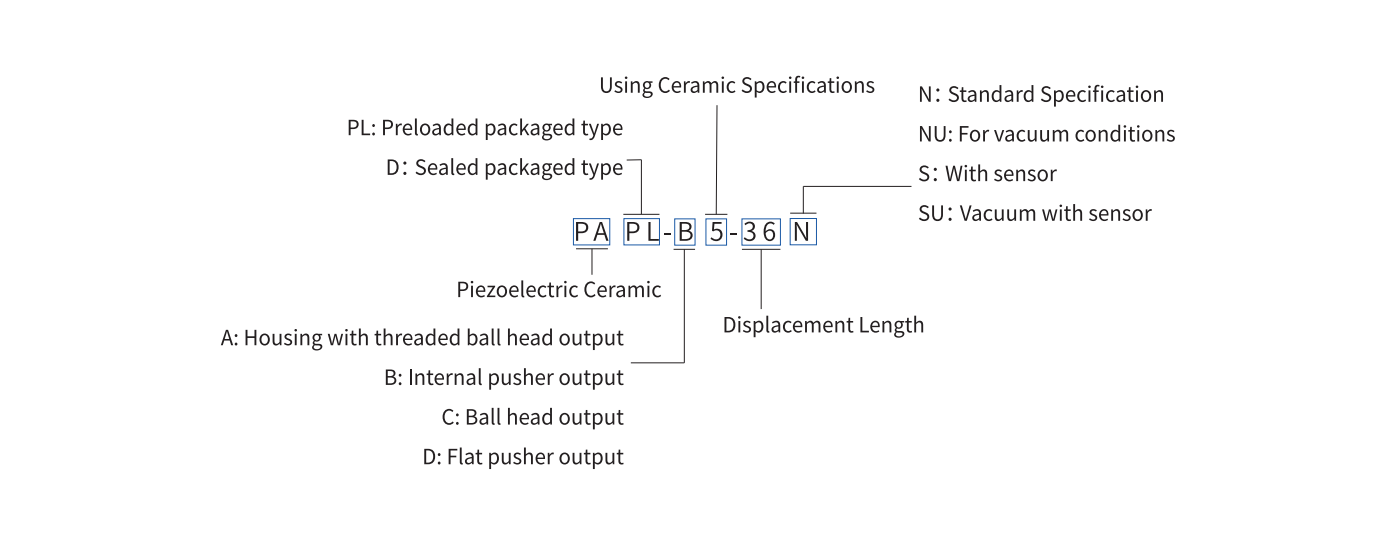

Model Interpretation
<<<Swipe left to see more parameters

Customization Info

PAPL series A5 piezoelectric preloading actuator, open-loop version

Model

Explain

PAPL-A5-36N

A5 series Preloaded Piezo Actuator, effective travel 40μm, open-loop.

PAPL-A5-45N

A5 series Preloaded Piezo Actuator, effective travel 50μm, open-loop.

PAPL-A5-60N

A5 series Preloaded Piezo Actuator, effective travel 65μm, open-loop.

PAPL-A5-90N

A5 series Preloaded Piezo Actuator, effective travel 100μm, open-loop.



PAPL series A5 piezoelectric preloading actuator, strain gauge closed-loop version

Model

Explain

PAPL-A5-36S

A5 series Preloaded Piezo Actuator, effective travel 40μm, strain gauge closed-loop.

PAPL-A5-45S

A5 series Preloaded Piezo Actuator, effective travel 50μm, strain gauge closed-loop.

PAPL-A5-60S

A5 series Preloaded Piezo Actuator, effective travel 65μm, strain gauge closed-loop.

PAPL-A5-90S

A5 series Preloaded Piezo Actuator, effective travel 100μm, strain gauge closed-loop.



PAPL series A5 piezoelectric preloading actuator, open-loop, vacuum compatible version

Model

Explain

PAPL-A5-36NU

A5 series Preloaded Piezo Actuator, effective travel 40μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-A5-45NU

A5 series Preloaded Piezo Actuator, effective travel 50μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-A5-60NU

A5 series Preloaded Piezo Actuator, effective travel 65μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-A5-90NU

A5 series Preloaded Piezo Actuator, effective travel 100μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.



PAPL series A5 piezoelectric preloading actuator, strain gauge closed-loop, vacuum compatible version

Model

Explain

PAPL-A5-36SU

A5 series Preloaded Piezo Actuator, effective travel 40μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-A5-45SU

A5 series Preloaded Piezo Actuator, effective travel 50μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-A5-60SU

A5 series Preloaded Piezo Actuator, effective travel 65μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-A5-90SU

A5 series Preloaded Piezo Actuator, effective travel 100μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.
