Preloaded Piezo Actuator
HOME > PRODUCTS > Piezo Products > Preloaded Piezo Actuator
C5 series Preloaded Piezo Actuator
C5 series Preloaded Piezo Actuator
C5 series Preloaded Piezo Actuator
Features

  • 1000N thrust
  • Piezoelectric ceramics with lifetime of one billion cycles
  • Sub-nanometer resolution
  • Simple structure, compact size
  • Vacuum compatible up to 10⁻⁵ Pa
  • Integrated spherical end cap

Download
Applications
  • Static and dynamic precision positioning
  • Laser tuning
  • Optical fibre positioning adjustment
  • Micro - nano technology
Description

Preloaded Piezo Actuator is an armored device for Piezo Stack Actuator, which plays a role in stack protection and easy installation. At the same time, the actuator applies pre-pressure to the piezoelectric ceramic internally, providing a certain amount of tension and adjustment of displacement output. Preloaded Piezo Actuator can be internally integrated with strain gauges to achieve closed-loop control.

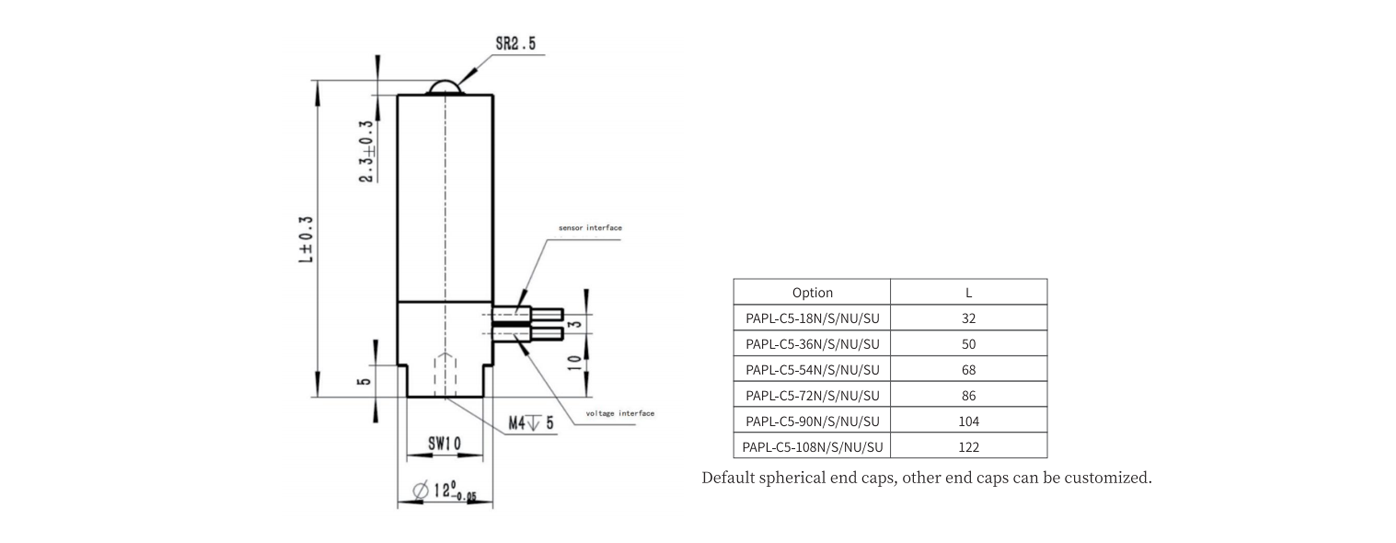

Interface Definition



Technical Specifications
<<<Swipe left to see more parameters



PAPL - C5 - 18N

PAPL - C5 - 36N

PAPL - C5 - 54N

PAPL - C5 - 60N

PAPL - C5 - 90N

PAPL - C5 - 108N

Unit

Tolerance

Travel range at 150V*

18

36

54

72

90

108

μm

±20%

Electrical capacitance**

1.5

3

4.5

6

7.5

9

μF

±20%

Open loop resolution

0.18

0.36

0.54

0.72

0.9

1.08

nm

Typical value

Integrated sensor SGS

















Closed loop resolution***

0.36

0.72

1.08

1.44

1.8

2.16

nm

Typical value

Resonant frequency

18

14

10

8.5

7

6

kHz

±20%

Stiffness

57

27

19

15

12

10

N/μm

±20%

Push force****

1000

1000

1000

1000

1000

1000

N

Max.value

Pull force

150

150

150

150

150

150

N

Max.value

Operating voltage

-20 - 150

V



Operating temperature range

-20 - 80

°C



Voltage connection

LEMO FFA.00.250





Sensor connection

LEMO FFA.0S.304





Cable length

1.5

m

±0.02m



*Displacement output under no load
** Capacitance test conditions: ambient temperature environment, 1Vpp, 1kHz
*** Closed - loop parameters applicable only to the closed - loop version of the piezoelectric preload actuator
**** Thrust test: drive voltage range 0 to 150V
Other specifications can be customized on request

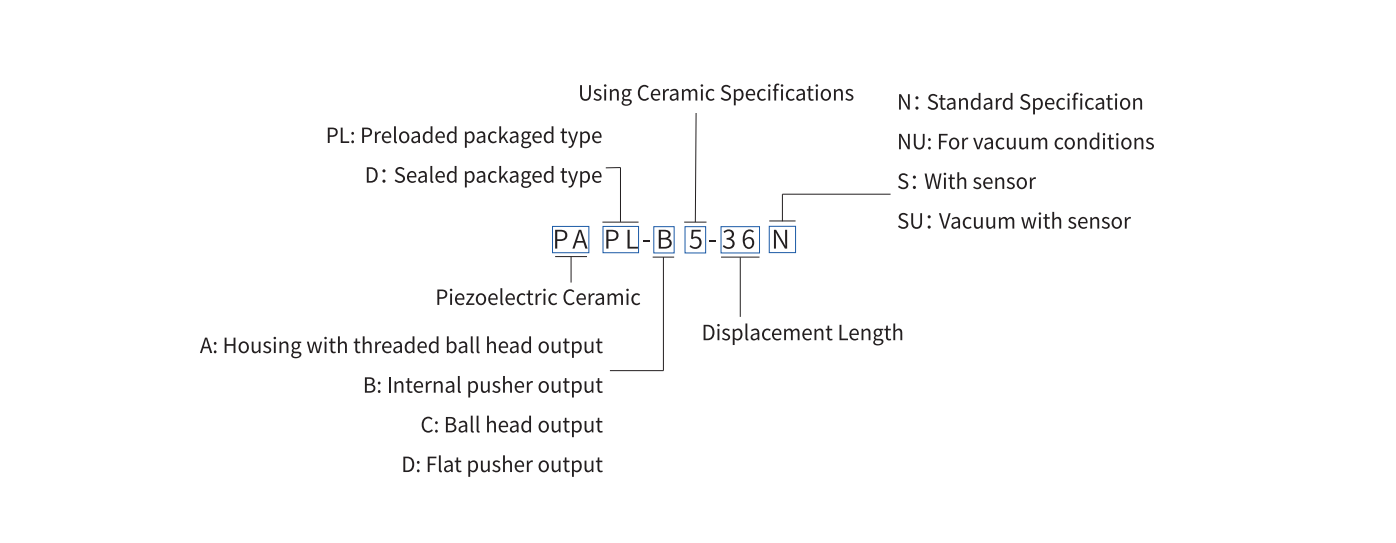

Model Interpretation
