Preloaded Piezo Actuator
HOME > PRODUCTS > Piezo Products > Preloaded Piezo Actuator
B7 series Preloaded Piezo Actuator
B7 series Preloaded Piezo Actuator
B7 series Preloaded Piezo Actuator
Features

  • 1000N thrust
  • Piezoelectric ceramics with lifetime of one billion cycles
  • Sub-nanometer resolution
  • Simple structure, compact size
  • Vacuum compatible up to 10⁻⁵ Pa
  • Threaded interface, optional flat and spherical end caps

Download
Applications
  • Static and dynamic precision positioning
  • Laser tuning
Description

Preloaded Piezo Actuator is an armored device for Piezo Stack Actuator, which plays a role in stack protection and easy installation. At the same time, the actuator applies pre-pressure to the piezoelectric ceramic internally, providing a certain amount of tension and adjustment of displacement output. Preloaded Piezo Actuator can be internally integrated with strain gauges to achieve closed-loop control.

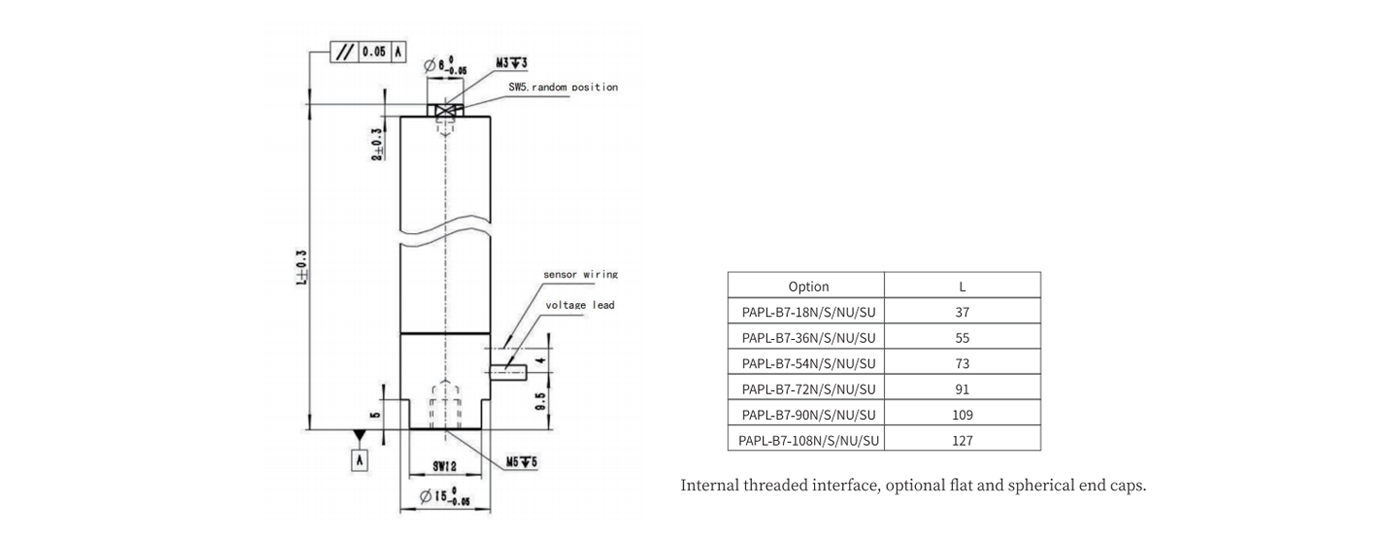

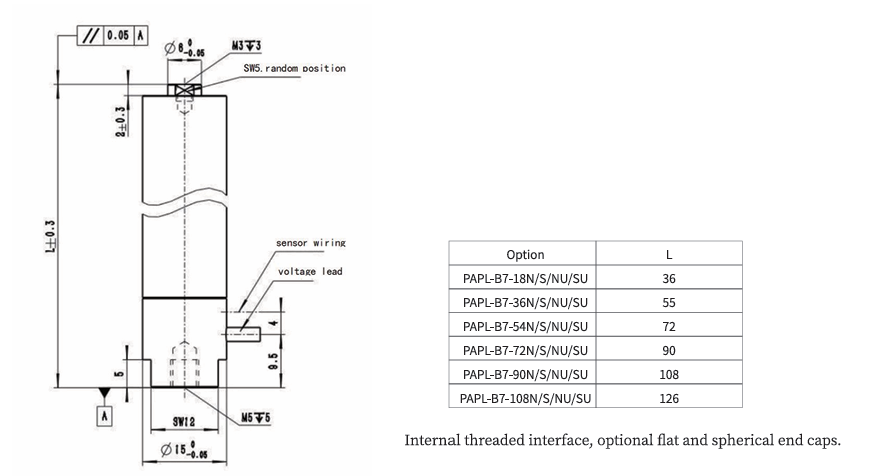

Interface Definition



Technical Specifications
<<<Swipe left to see more parameters



PAPL-B7-18N

PAPL-B7-36N

PAPL-B7-54N

PAPL-B7-60N

PAPL-B7-90N

PAPL-B7-108N

Unit

Tolerance

Travel range at 150V*

18

36

54

72

90

108

μm

±20%

Electrical capacitance**

3

6

9

12

15

18

μF

±20%

Open loop resolution

0.18

0.36

0.54

0.72

0.9

1.08

nm

Typical value

Integrated sensor







SGS





/



Closed loop resolution***

0.36

0.72

1.08

1.44

1.8

2.16

nm

Typical value

Resonant frequency

22

17.5

15

13

11

10

kHz

±20%

Stiffness

225

107

75

57

44

38

N/μm

±20%

Push force****

2000

2000

2000

2000

2000

2000

N

Max. value

Pull force

300

300

300

300

300

300

N

Max. value

Operating voltage

-20~150

-20~150

-20~150

-20~150

-20~150

-20~150

V



Operating temperature range

-20~80

-20~80

-20~80

-20~80

-20~80

-20~80

°C



Voltage connection







LEMO FFA.00.250





/



Sensor connection







LEMO FFA.0S.304





/



Cable length







1.5





m

±0.02 m



*Displacement output under no load
** Capacitance test conditions: ambient temperature environment, 1Vpp, 1kHz
*** Closed - loop parameters applicable only to the closed - loop version of the piezoelectric preload actuator
**** Thrust test: drive voltage range 0 to 150V
Other specifications can be customized on request

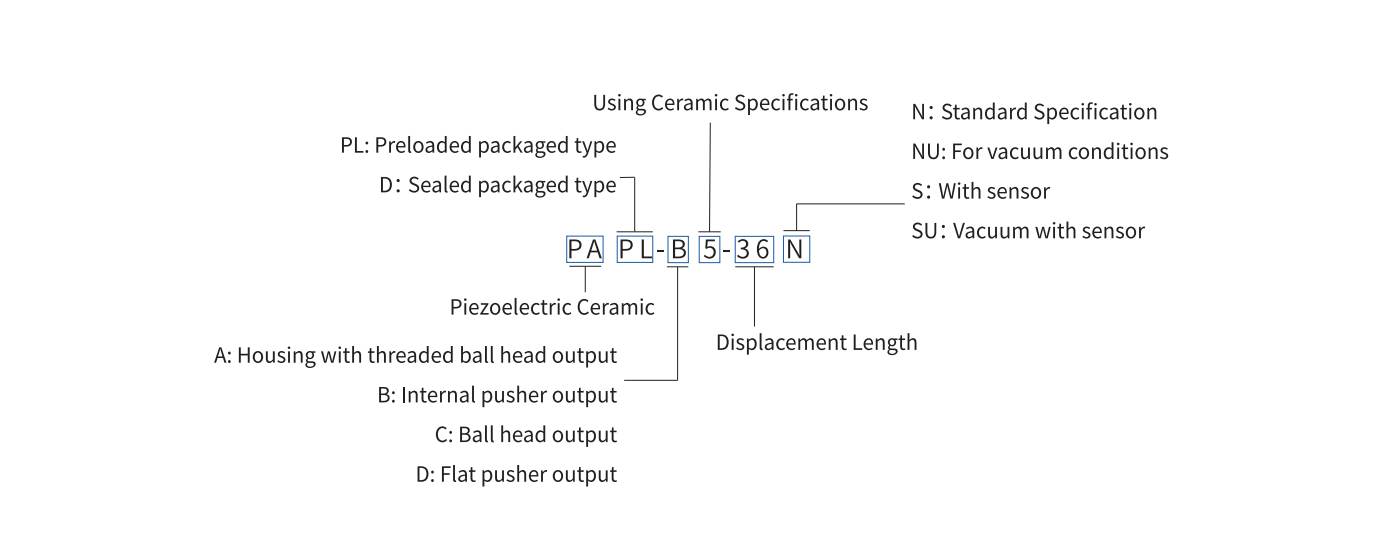

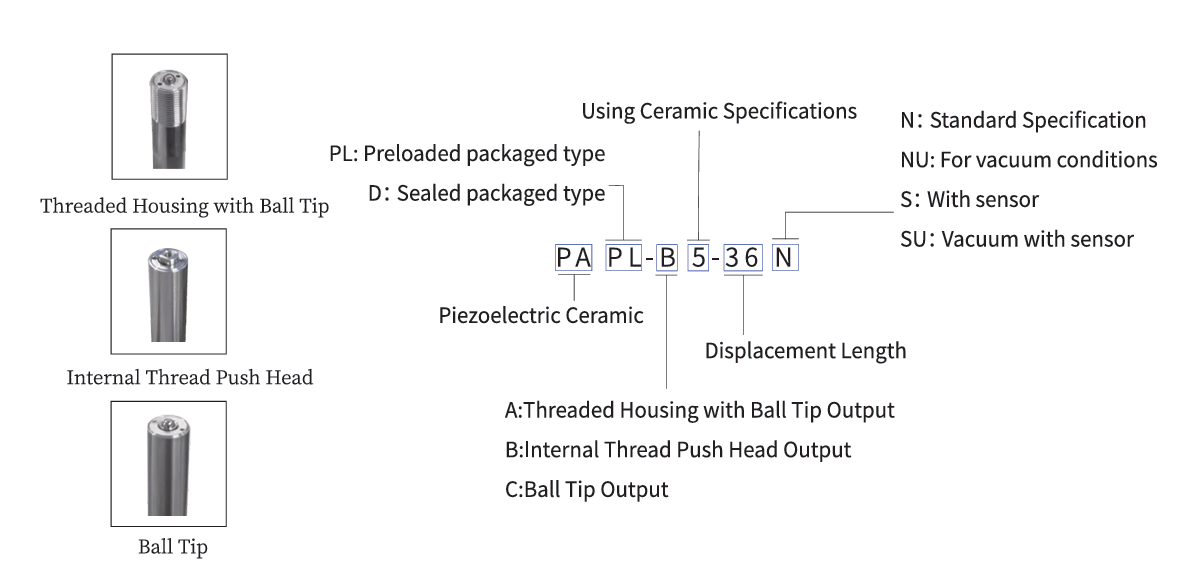

Model Interpretation
<<<Swipe left to see more parameters

Customization Info

PAPL series B7 piezoelectric preloading actuator, open-loop version

Model

Explain

PAPL-B7-18N

B7 series Preloaded Piezo Actuator, effective travel 18μm, open-loop.

PAPL-B7-36N

B7 series Preloaded Piezo Actuator, effective travel 36μm, open-loop.

PAPL-B7-54N

B7 series Preloaded Piezo Actuator, effective travel 54μm, open-loop.

PAPL-B7-60N

B7 series Preloaded Piezo Actuator, effective travel 60μm, open-loop.

PAPL-B7-90N

B7 series Preloaded Piezo Actuator, effective travel 90μm, open-loop.

PAPL-B7-108N

B7 series Preloaded Piezo Actuator, effective travel 108μm, open-loop.



PAPL series B7 piezoelectric preloading actuator, strain gauge closed-loop version

Model

Explain

PAPL-B7-18S

B7 series Preloaded Piezo Actuator, effective travel 18μm, strain gauge closed-loop.

PAPL-B7-36S

B7 series Preloaded Piezo Actuator, effective travel 36μm, strain gauge closed-loop.

PAPL-B7-54S

B7 series Preloaded Piezo Actuator, effective travel 54μm, strain gauge closed-loop.

PAPL-B7-60S

B7 series Preloaded Piezo Actuator, effective travel 60μm, strain gauge closed-loop.

PAPL-B7-90S

B7 series Preloaded Piezo Actuator, effective travel 90μm, strain gauge closed-loop.

PAPL-B7-108S

B7 series Preloaded Piezo Actuator, effective travel 108μm, strain gauge closed-loop.



PAPL series B7 piezoelectric preloading actuator, open-loop, vacuum compatible version

Model

Explain

PAPL-B7-18NU

B7 series Preloaded Piezo Actuator, effective travel 18μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-36NU

B7 series Preloaded Piezo Actuator, effective travel 36μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-54NU

B7 series Preloaded Piezo Actuator, effective travel 54μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-60NU

B7 series Preloaded Piezo Actuator, effective travel 72μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-90NU

B7 series Preloaded Piezo Actuator, effective travel 90μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-108NU

B7 series Preloaded Piezo Actuator, effective travel 108μm, open-loop, vacuum compatible up to 10⁻⁵ Pa.



PAPL series B7 piezoelectric preloading actuator, strain gauge closed-loop, vacuum compatible version

Model

Explain

PAPL-B7-18SU

B7 series Preloaded Piezo Actuator, effective travel 18μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-36SU

B7 series Preloaded Piezo Actuator, effective travel 36μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-54SU

B7 series Preloaded Piezo Actuator, effective travel 54μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-60SU

B7 series Preloaded Piezo Actuator, effective travel 72μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-90SU

B7 series Preloaded Piezo Actuator, effective travel 90μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.

PAPL-B7-108SU

B7 series Preloaded Piezo Actuator, effective travel 108μm, strain gauge closed-loop, vacuum compatible up to 10⁻⁵ Pa.
