The PAPL-C001 Piezoelectric Actuator is a precision ceramic drive delivering direct conversion of electrical energy to linear motion. It features high resolution and large driving force, making it suitable for semiconductor equipment, medical devices, and other demanding applications.
Default Output: Flat Push Head (customizable upon request)
|
|
PAPL-C001 |
Unit |
Tolerance |
|
Travel range at 150V* |
60 |
µm |
15% |
|
Electrical capacitance** |
6.2 |
µF |
15% |
|
Open loop resolution |
0.06 |
nm |
/ |
|
Integrated sensor*** |
/ |
|
/ |
|
Resonant frequency |
11 |
kHz |
15% |
|
Stiffness |
8.5 |
N/µm |
15% |
|
Push force**** |
1000 |
N |
|
|
Pull force |
150 |
N |
|
|
Operating voltage |
-20~150 |
V |
/ |
|
Operating temperature range |
-20~80 |
°C |
/ |
|
Voltage connection |
LEMO 00.250 |
|
/ |
|
Cable length |
1.5 |
m |
0.5% |
* Displacement output under no load;
** Capacitance test conditions: ambient temperature environment, 500mVpp, 1kHz;
*** Parameters applicable only to the open-loop version of the piezoelectric preload actuator;
**** Thrust test: drive voltage range 0 to 150V;
Other specifications can be customized on request.

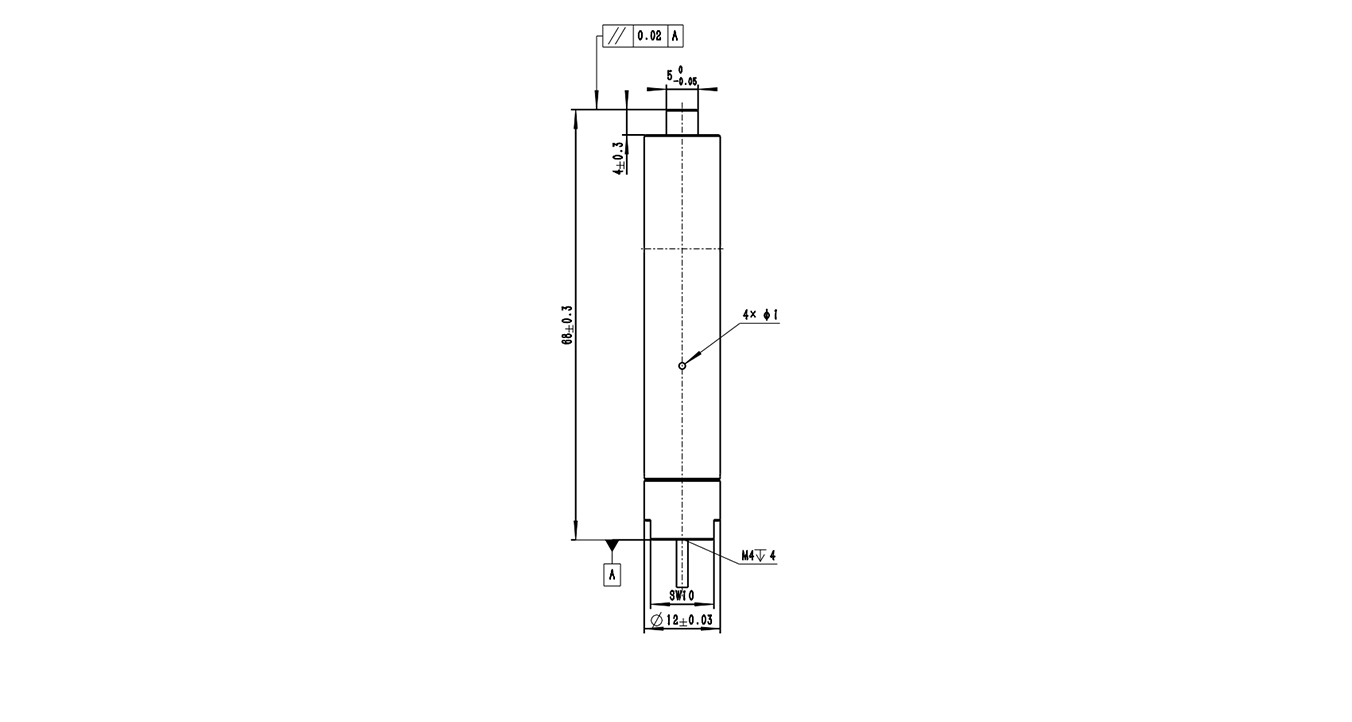

C001 series Preloaded Piezo Actuator, open-loopversion
|
Type |
Feature |
|
PAPL-C001 |
C001 Preloaded Piezo Actuator: effective travel 60µm, open-Loop, non-magnetic, Suitablefor high vacuum environments. |
