Analog piezo linear servo driver controller
The A-303 series piezo driver controller utilizes analog control to enable open-loop driving of piezo actuator products and servo closed-loop control with strain gauge sensors.
High-precision sensor interface
Provides a high-precision strain gauge sensor inputinterface, achieving nanometer-level resolution.
Control modes
Supports analog interface control and RS485 communication control for real-time motion control and position monitoring.Built-in Pl control algorithm and Notch filter enhance dynamic response and closed-loop accuracy.
Features outputovercurrent/overvoltage protection, temperature detection/error reporting,and other monitor ing functions.
|
Basics |
A-303.1A |
Unit |
|
Function |
Analog three-channel piezoelectric linear drive controller, with SGS closed-loop |
|
|
Motor Channels |
3 |
|
|
Output voltage |
-20~150 |
V |
|
Peak power / channel |
55 |
W |
|
Average output power / channel |
17 |
W |
|
Peak current / channel |
367 |
mA |
|
Average current / channel |
117 |
mA |
|
Interfaces and operations |
||
|
Analog control interface |
SMB analog voltage input: 0~10V |
|
|
RS485 communication interface |
D-SUB9 male connector |
|
|
PZT&SGS interface |
D-SUB25 female connector |
|
|
Sensor type |
Strain gauge sensor (SGS) |
|
|
Support function |
Point-to-point motion |
|
|
Miscellaneous |
||
|
Operating voltage |
DC24V |
|
|
Maximum power consumption |
70 |
W |
|
Operating temperature range |
5~50 |
°C |
|

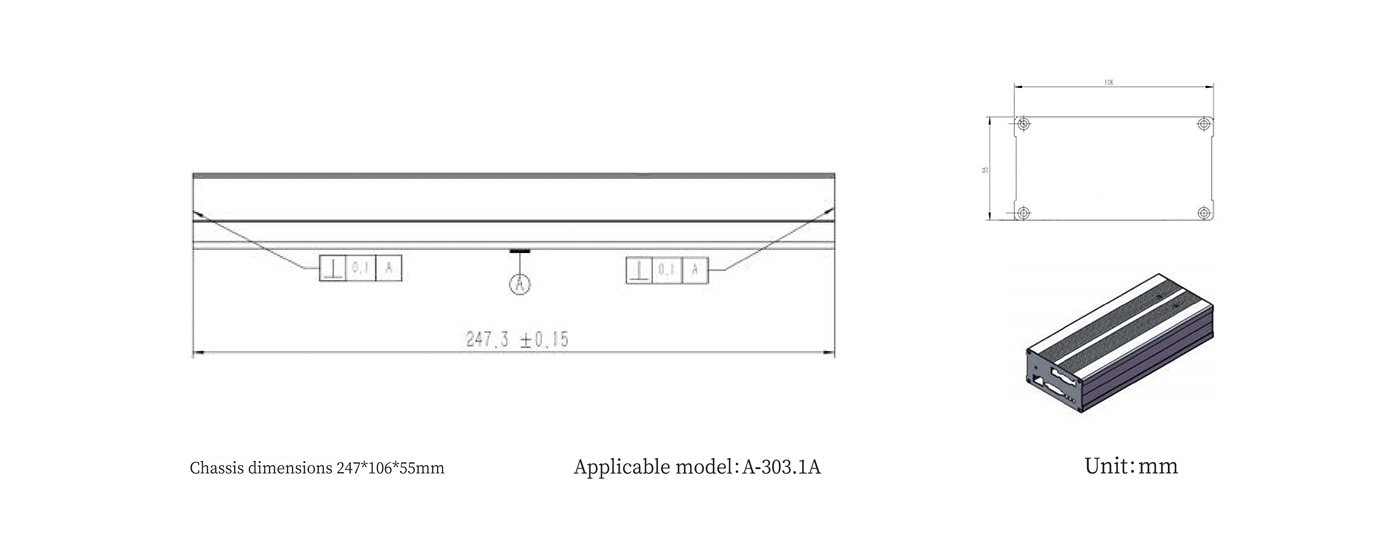

Dimensions |
247×106×55 |
mm×mm×mm |
|
Net weight |
1.25±0.1 |
Kg |
A-303 Series Piezo linear driver controller
|
Type |
Feature |
|
A-303.lA |
3-channel piezo linear driver controller, closed loop, analog controlinterface/RS485interface |
