The A-101 series piezo driver controller employs digital control to enable open-loop motion control of piezo actuator products.
Supports analog interface control signals and RS232 communication for power amplification drive output. Built-in short-circuit/overvoltage protection. Front panel status/error indicator lights.
|
Basics |
A-101.20H |
Unit |
|
Function |
1-channel piezo linear driver controller |
|
|
Number of Channels |
1 |
|
|
Output voltage |
0~150 |
V |
|
Signal frequency |
DC-3kHz |
|
|
Peak power / channel |
90 |
W |
|
Average output power / channel |
30 |
W |
| Peak current / channel | 605 | mA |
| Average output current / channel |
193 |
mA |
|
Interfaces and operations |
||
|
Analog control interface |
SMB, analog voltage input:0~10V |
|
|
PZT interface |
ZPL.00S.250.NTN |
|
|
Communication interface |
RS232, D_SUB 9 female connector |
|
|
Support function |
point-to-point motion |
|
|
Miscellaneous |
||
|
Operating voltage |
DC 24V |
|
|
Maximum power consumption |
70 |
W |
|
Operating temperature range |
5~50 |
°C |
|

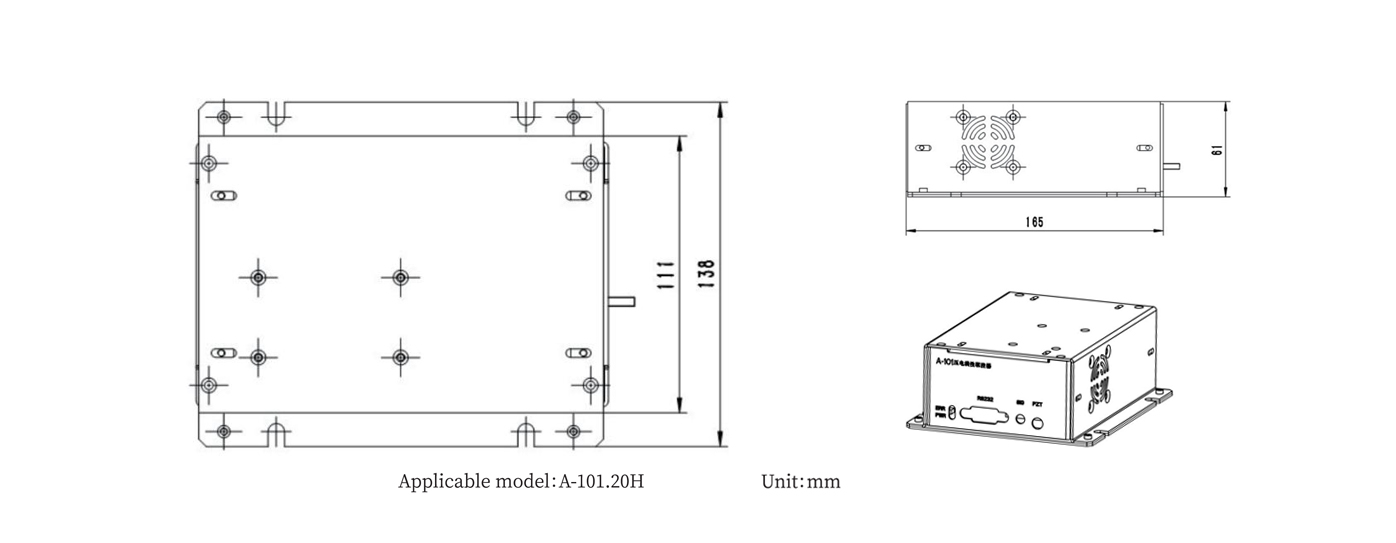

Dimensions |
162×138×61 |
mm×mm×mm |
|
Net weight |
0.6±0.1 |
Kg |
A-101 Series Piezo linear driver controller
|
Type |
Feature |
|
A-101.20H |
1-channel piezo linear driver controller, open Loop,analog control/RS232 communication interface |
