Used to drive and control piezo actuators, can achieve open-loop driving and servo closed-loop control with strain gauge sensors.
With built-in voltage limiting, current limiting, overheating, output and other multiple protection, as well as signal response delay, notch filtering, etc.
As a semiconductor device, it's recommended to heat more than 30min before use, in order to achieve a stable temperature state.
|
Basics |
A-301.101 |
Unit |
|
Function |
Analog single-channel piezoelectric linear drive controller, with SGS closed-loop |
|
|
Number of Channels |
1 |
|
|
Output voltage |
-20~+150 |
V |
|
Peak power / channel |
40 |
W |
|
Average output power / channel |
13 |
W |
|
Peak current / channel |
276 |
mA |
|
Average output current / channel |
87 |
mA |
|
Interfaces and operations |
|
|
|
Control interface |
Analog voltage input: 0~10V |
|
|
Position monitoring interface |
Analog voltage output: 0~10V |
|
|
PZT drive interface |
LEMO EPL.00.250.NTN |
|
|
Sensor interface |
LEMO EPL.0S.304.HLN |
|
|
Sensor type |
Strain gauge sensor (SGS) |
|
|
Support function |
Point-to-point motion |
|
|
Miscellaneous |
|
|
|
Operating voltage |
DC24V |
|
|
Maximum power consumption |
50 |
W |
|
Operating temperature range |
5~50 |
°C |
|

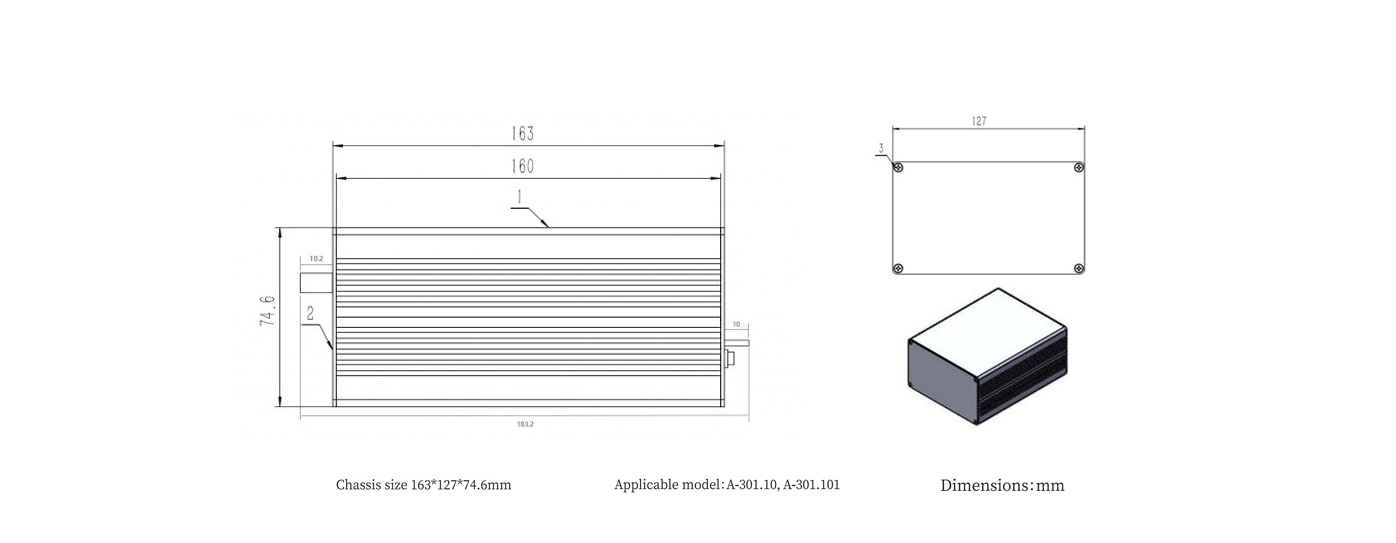

Dimensions |
183.2×127×74.6 |
mm×mm×mm |
|
Net weight |
0.87±0.1 |
Kg |
A-301 Series Piezo Linear Controller
|
Type |
Feature |
|
A-301.10 |
1-Channel Piezo Linear Drive Controller; Open-Loop; Analog Control Interface |
|
A-301.101 |
1-Channel Piezo Linear Drive Controller; SGS closed-Loop; Analog Control Interface |
