Channels from 1 to 3 are available as request, supporting servo control of YiNGUAN PMIN series piezo stick-slip inertial motors, including open-loop stepping motion mode, open-loop analog drive mode, closed-loop motion mode.
Providing high-precision linear scale signal interface with incremental ABZ type.
Providing RS-485 communication interface, with Modbus RTU protocol. The efficient and multi-function command set can meet the high-performance motion control of piezo motors and real-time monitoring of the driver status.
|
Basic functions |
Unit |
C-90X.3B |
|
Function |
1~3 channel PMIN piezo motor servo controller, incremental linear scale closed loop |
|
|
Output voltage |
V |
0 ~ 70 |
|
Max. output current |
|
0.5A/channel |
|
Interfaces and operations |
||
|
Communication interface |
RS-485 |
|
|
Motor/Sensor connector |
DB37(Female) |
|
| Sensor type | incremental linear scale, ABZ type(Motor interface RS-422) | |
| Communication protocol | Modbus RTU | |
|
User software |
PMIN Soft Panel |
|
| Support function | point-to-point motion | |
|
Miscellaneous |
||
|
Operating voltage |
|
24VDC |
|
Max. power |
W |
120 |
|
Operating temperature range |
℃ |
5~50 |
|

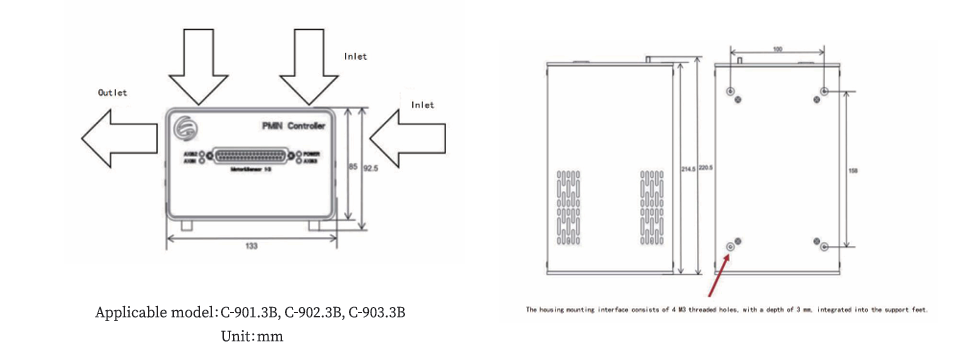

Dimensions |
mm×mm×mm |
133×221×85 |
C-90x series piezo motor servo controller
| Type | Feature |
| C-901.3B | 1-channel PMIN piezo motor servo controller, closed loop, RS-485 |
| C-902.3B | 2-channel PMIN piezo motor servo controller, closed loop, RS-485 |
| C-903.3B | 3-channel PMIN piezo motor servo controller, closed loop, RS-485 |
