The piezoelectric bimorph is composed of piezoelectric ceramic layers and internal electrodes co-fired together, allowing independent control of the drive voltage for each ceramic layer. Standard drive voltages include 0 - 24 and 0 - 150, and they meet the requirements for low frequency, medium - frequency, and high - frequency applications.
|
|

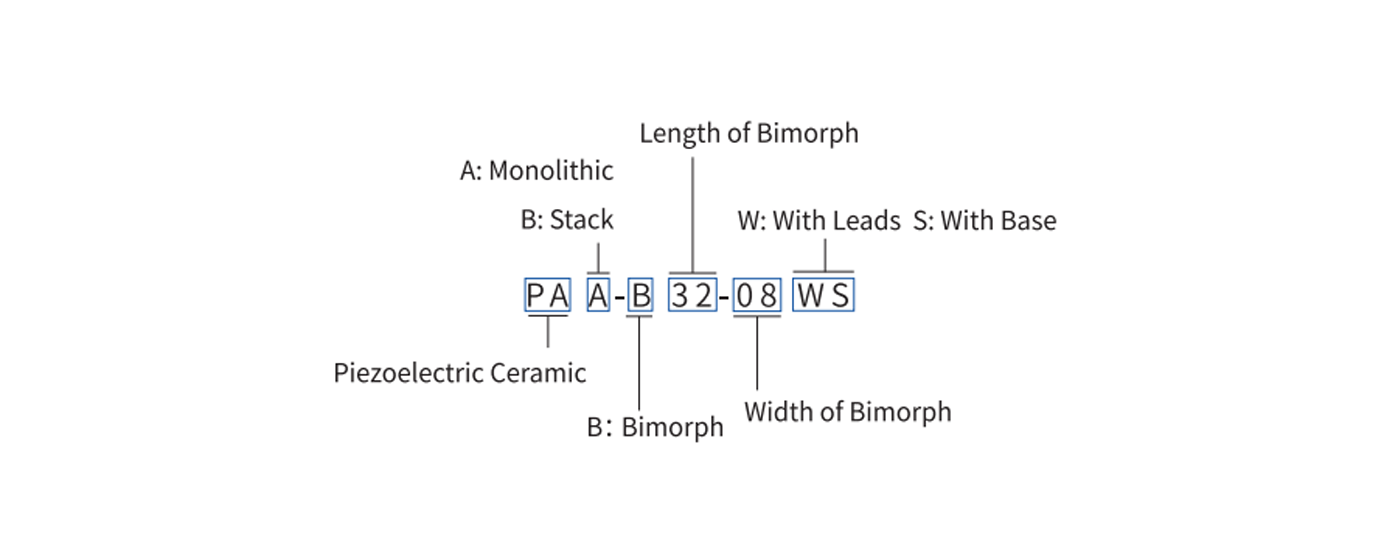

PAA-B20-08W |
PAA-B32-08W |
Unit |
Tolerance |
|
Active axes |
Z |
Z |
|
|
|
Max. displacement |
±135 |
±450 |
μm |
±15% |
|
Displacement hysteresis |
<15% |
<15% |
|
|
|
Free length |
18 |
30 |
mm |
|
|
Max. load capacity |
1.4 |
1.5 |
N |
|
|
Operating voltage |
0 - 150 |
0 - 150 |
V |
|
|
Resonant frequency |
930 |
350 |
Hz |
±15% |
|
Dielectric loss |
<2.0% |
<2.0% |
|
|
|
Electrical capacitance |
145(unilateral) |
550(unilateral) |
nF |
±15% |
|
Operating temperature range |
-25~130 |
-25~130 |
°C |
|
|
Electrode |
Silver |
Silver |
|
|
|
Curie temperature |
230 |
230 |
°C |
|
|

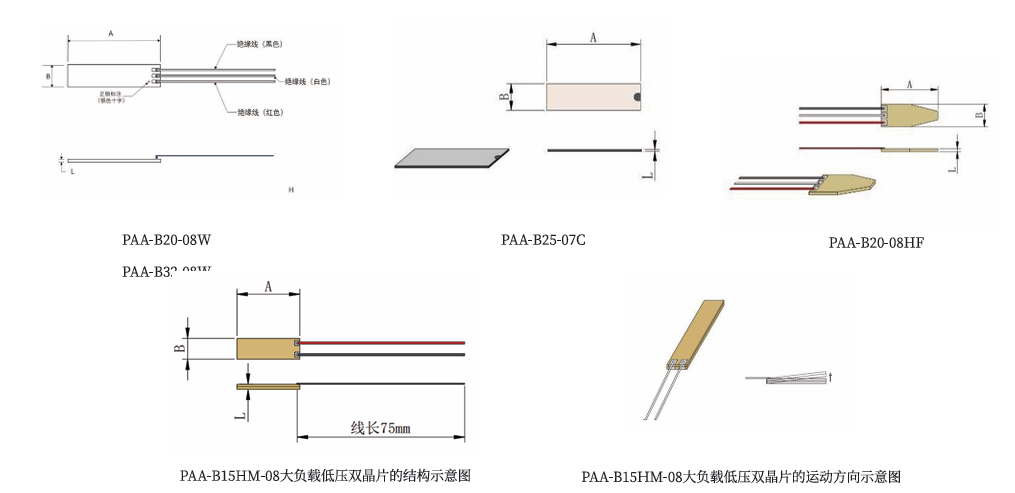

Dimensions - A |
20 |
32 |
mm |
±0.1 mm |
|
Dimensions - B |
8 |
7.8 |
mm |
±0.1 mm |
|
Dimensions - L |
0.8 |
0.8 |
mm |
±0.05 mm |
|
MTTF |
15.3 |
13.7 |
year |
|
*Displacement test: drive voltage range 0 to 150V, tolerance ±15%
**Thrust test: drive voltage range 0 to 150V
***Capacitance test conditions: ambient temperature environment, 1Vpp, 1kHz, tolerance ±15%
**** MTTF test conditions: 150V, 85% humidity, 85°C environment
Standard wiring harness, length 75mm, AWG32, PTFE insulation
Pre-installed PCB version available, followed by 'S' in the product code
Other specifications can be customized on request
|
|
PAA-B25-07C |
PAA-B20-08HF |
Unit |
Tolerance |
|
Active axes |
Z |
Z |
|
|
|
Max. displacement |
±80 |
±110 |
μm |
±15% |
|
Displacement hysteresis |
<15% |
<15% |
|
|
|
Free length |
21 |
12 |
mm |
|
|
Max. load capacity |
0.2 |
2.5 |
N |
|
|
Operating voltage |
0 - 24 |
0 - 150 |
V |
|
|
Resonant frequency |
35 |
>3000 |
Hz |
±15% |
|
Dielectric loss |
<2.0% |
<2.0% |
|
|
|
Electrical capacitance |
70(overall device) |
280(unilateral) |
nF |
±15% |
|
Operating temperature range |
-25~130 |
-25~130 |
°C |
|
|
Electrode |
Silver/Gold |
Silver |
|
|
|
Curie temperature |
230 |
230 |
°C |
|
|
Dimensions - A |
25 |
20 |
mm |
±0.1 mm |
|
Dimensions - B |
7.1 |
8 |
mm |
±0.1 mm |
|
Dimensions - L |
0.5 |
0.8 |
mm |
±0.05 mm |
|
MTTF |
6.1 |
13.8 |
year |
|
*Displacement test: drive voltage range 0 to 150V, tolerance ±15%
**Thrust test: drive voltage range 0 to 150V
***Capacitance test conditions: ambient temperature environment, 1Vpp, 1kHz, tolerance ±15%
**** MTTF test conditions: 150V, 85% humidity, 85°C environment
Standard wiring harness, length 75mm, AWG32, PTFE insulation
Pre - installed PCB version available, followed by 'S' in the product code
Other specifications can be customized on request

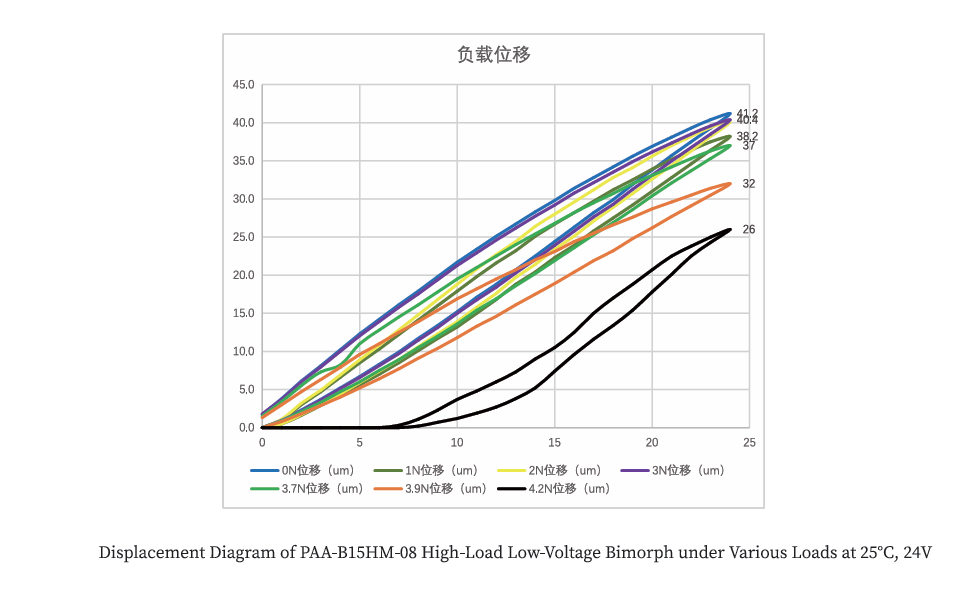

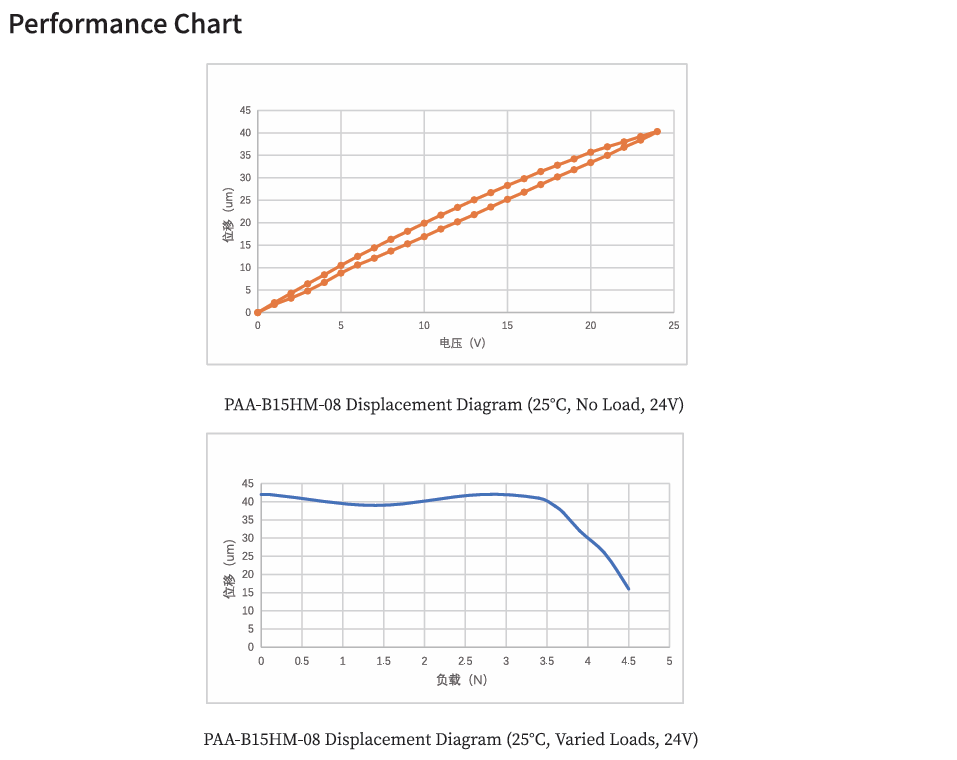

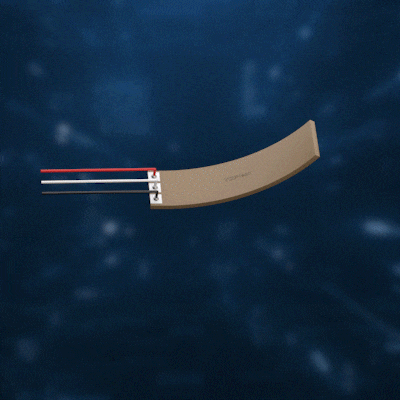

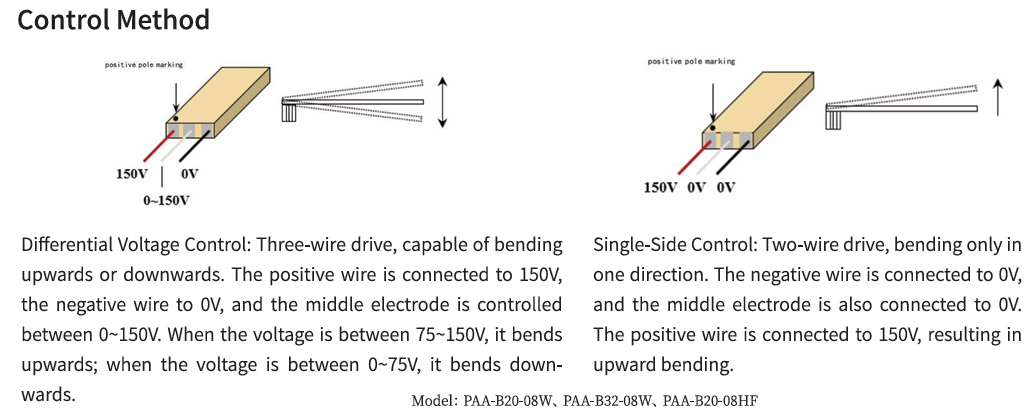

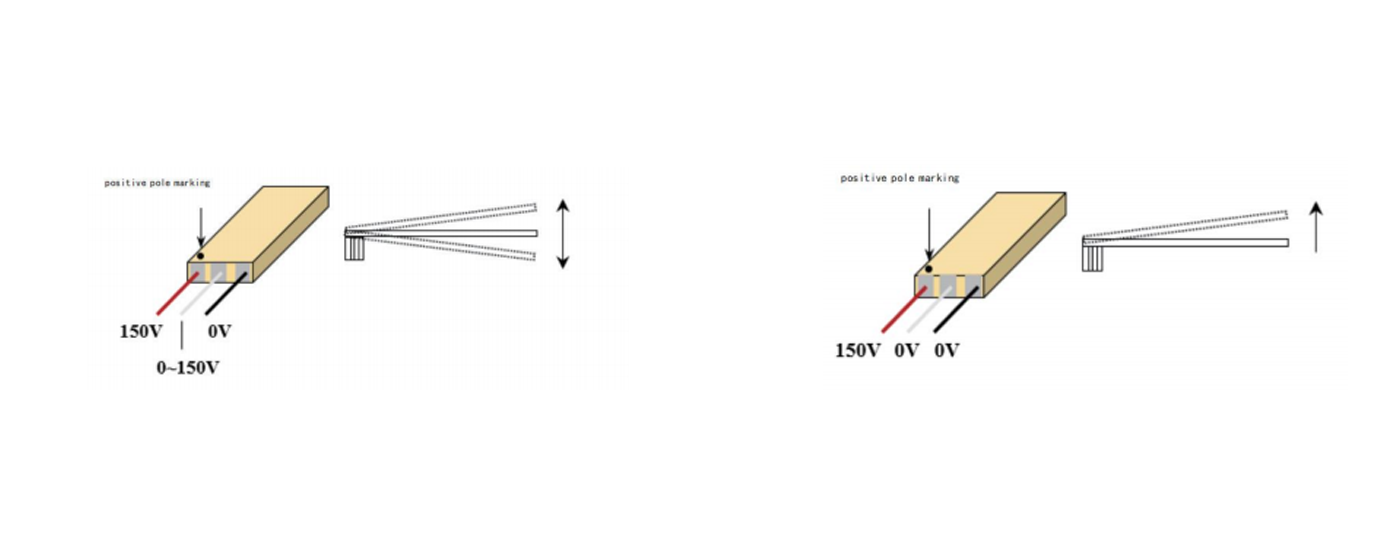

Differential Voltage Control
Three - wire drive, capable of bending upwards or downwards. The positive wire is connected to 150V, the negative wire to 0V, and the middle electrode is controlled between 0 - 150V. When the voltage is between 75 - 150V, it bends upwards, when the voltage is between 0~ - 75V, it bends downwards.
Single - Side Control
Two - wire drive, bending only in one direction. The negative wire is connected to 0V, and the middle electrode is also connected to 0V. The positive wire is connected to 150V, resulting in upward bending.
