Highly durable outer layer with a resistance of millions of reciprocating cycles.
Cleanliness level of ISO Class 100, effectively protecting cables and reducing cable powder。
Wide range of application.
Customizable for different POD widths, meeting customer customization requirements.

Download

Consult share

Applications

POD – laser equipment, new energy battery inspection equipment, high-precision flaw detection equipment, semiconductor back-end chip inspection equipment, high-end lens assembly equipment for lenses, semiconductor packaging equipment, liquid crystal panel-related equipment, and robotics.

Interface Definition

Technical Specifications

<<<Swipe left to see more parameters

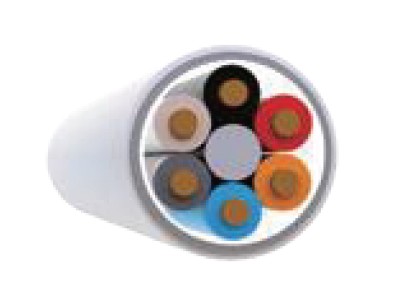

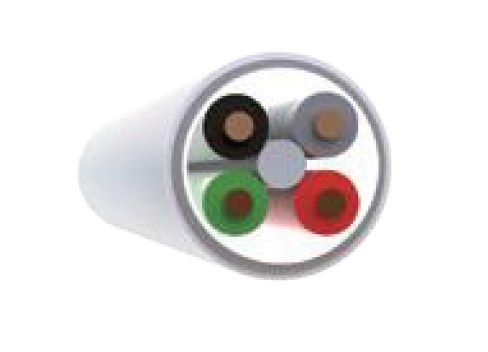

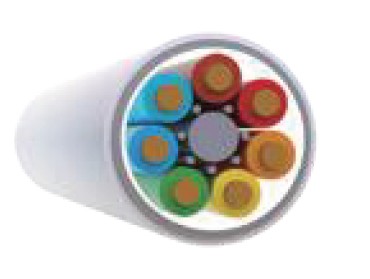

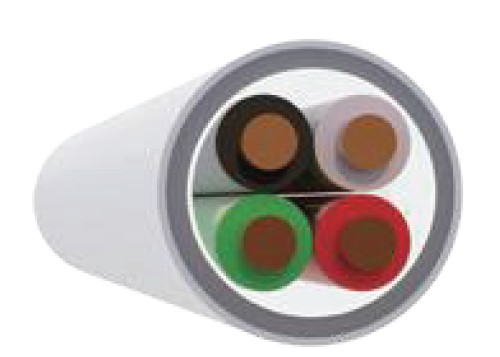

	Model		Model

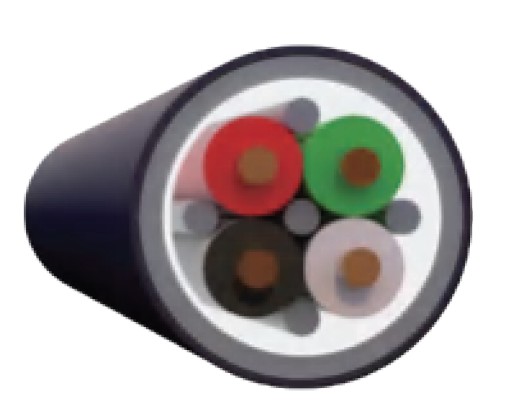

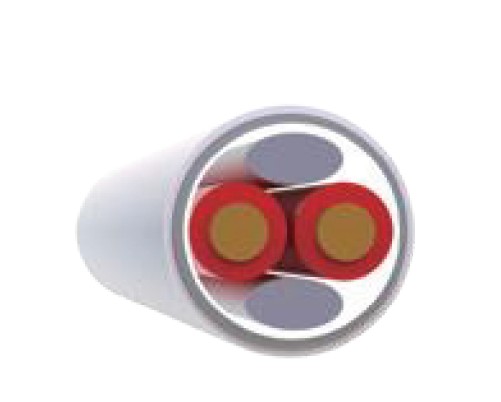

	46 - C18 - 00 - 00 Flat flex - 4×0.75		46 - 1P26 - 00 - 00 26#1P+Filler+PTFE no Jacket

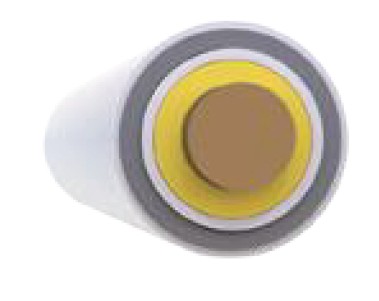

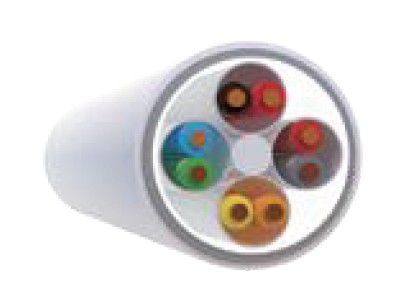

	46 - 4P26 - 00 - 00 Flat flex - 4×2×0.14		S - 23032401 0.25mm2/1C+S+PTFE

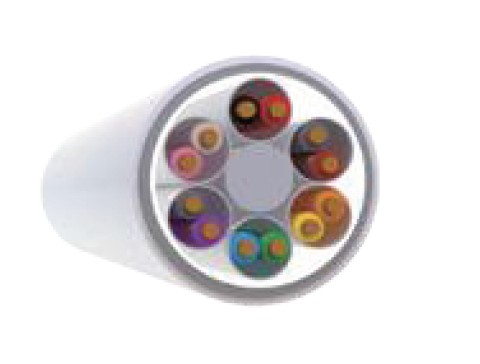

	46 - 6P26 - 00 - 00 Flat flex - 6×2×0.14		47 - 5C26 - 00 - 00 72/0.05±0.008mm

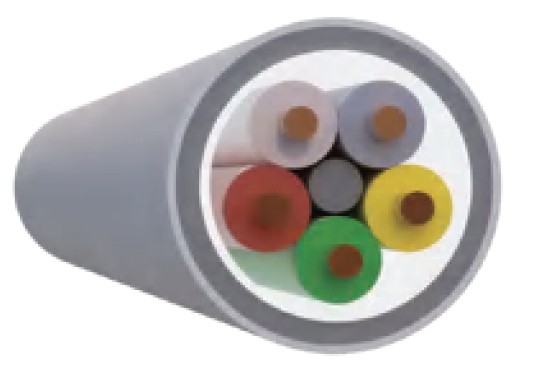

	46 - 6C22 - 00 - 00 Flat flex - 6*0.3		46 - 4C21 - 00 - 00 100/0.08±0.008mm

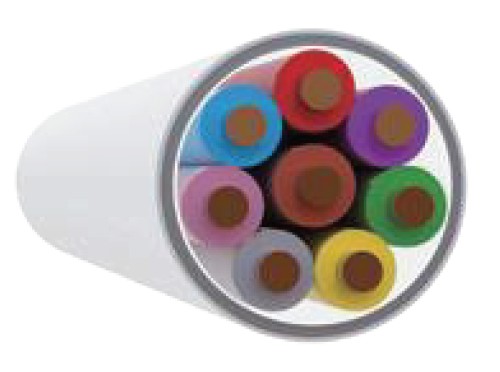

	46 - 8C21 - 00 - 00 Flat flex - 8*0.3		47 - 4C20 - 00 - 00 150/0.08±0.008mm

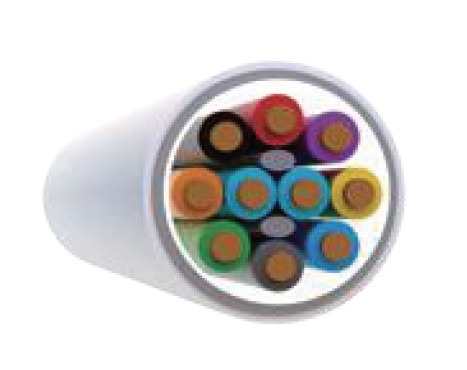

	46 - AC27 - 00 - 00 Flat flex - 10*0.1		47 - 8P26 - 00 - 00 28/0.08±0.008mm...
